SAE J429

$59.00

Mechanical and Material Requirements for Externally Threaded Fasteners

2014 Edition

Published by SAE International, 05/07/2014

PDF

All of our standards are only available in PDF (Portable Document Format), an electronic, downloadable format.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.

SAE J429, 2014 Edition – Mechanical and Material Requirements for Externally Threaded Fasteners

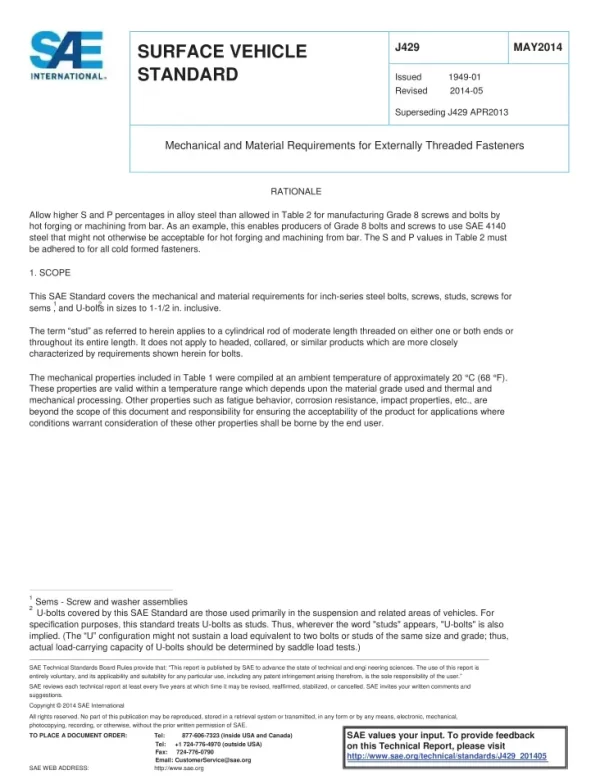

This SAE Standard covers the mechanical and material requirements for inch-series steel bolts, screws, studs, screws for sems1, and U-bolts2 in sizes to 1-1/2 in. inclusive.

The term “stud” as referred to herein applies to a cylindrical rod of moderate length threaded on either one or both ends or throughout its entire length. It does not apply to headed, collared, or similar products which are more closely characterized by requirements shown herein for bolts.

The mechanical properties included in Table 1 were compiled at an ambient temperature of approximately 20 °C (68 °F). These properties are valid within a temperature range which depends upon the material grade used and thermal and mechanical processing. Other properties such as fatigue behavior, corrosion resistance, impact properties, etc., are beyond the scope of this document and responsibility for ensuring the acceptability of the product for applications where conditions warrant consideration of these other properties shall be borne by the end user.

1 Sems – Screw and washer assemblies

2 U-bolts covered by this SAE Standard are those used primarily in the suspension and related areas of vehicles. For specification purposes, this standard treats U-bolts as studs. Thus, wherever the word “studs” appears, “U-bolts” is also implied. (The “U” configuration might not sustain a load equivalent to two bolts or studs of the same size and grade; thus, actual load-carrying capacity of U-bolts should be determined by saddle load tests.)

General Product Information:

Revision 2014 Edition
Document Type PDF
Document Language English
Pages 14
Publisher SAE International (SAE)
Status Current

Preview
