SAE AS39029/86C

$34.00

CONTACTS, ELECTRICAL CONNECTOR, SOCKET, CRIMP REMOVABLE, THERMOCOUPLE (FOR AS50151 AS34501 SERIES AND MIL-DTL-83723 SERIES II CONNECTORS)

STANDARD by SAE International , 06/19/2024

PDF

All of our standards are only available in PDF (Portable Document Format), an electronic, downloadable format.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.

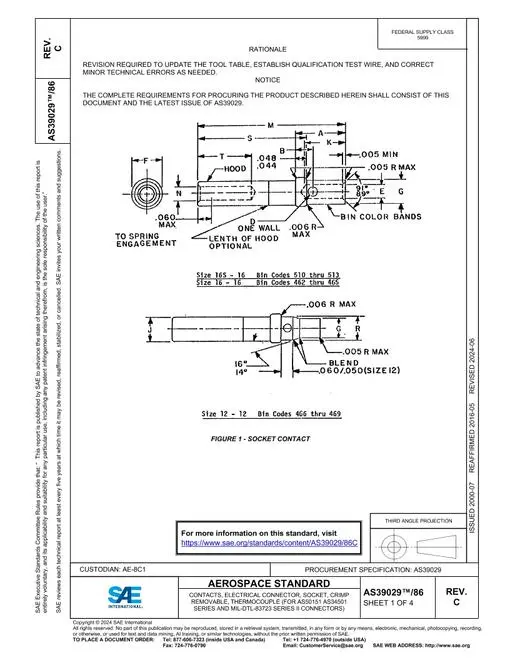

SAE AS39029/86C , Edition C, 2024 – CONTACTS, ELECTRICAL CONNECTOR, SOCKET, CRIMP REMOVABLE, THERMOCOUPLE (FOR AS50151 AS34501 SERIES AND MIL-DTL-83723 SERIES II CONNECTORS)

SAE AS39029/86C is a standard established by SAE International. It specifies the requirements for electrical connector contacts, particularly the socket, crimp removable thermocouple contacts used in AS50151, AS34501 Series, and MIL-DTL-83723 Series II connectors. The standard is relevant for applications in the aerospace and defense industries.

Key aspects of SAE AS39029/86C include:

  1. Scope: This standard applies to removable thermocouple contacts that are crimped onto wires and inserted into connector assemblies. These connectors are often used in high-reliability and critical applications.
  2. Revisions: The latest revision of this standard was published on June 19, 2024. This revision includes updates to the tool table, establishes qualification test wire requirements, and corrects minor technical errors to ensure compliance with the latest industry practices.
  3. Issuing Committee: The standard is maintained by the AE-8C1 Connectors Committee, which is responsible for setting the specifications and ensuring they meet the needs of the industry.

General Product Information:

Revision C
Document Type PDF
Document Language English
Pages 4
Publisher SAE International (SAE)
Status Current
