ASTM A653/A653M

$44.00

Standard Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc-Iron Alloy-Coated (Galvannealed) by the Hot-Dip Process

2022 Edition

Published by ASTM International, 11/01/2022

PDF

All of our standards are only available in PDF (Portable Document Format), an electronic, downloadable format.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.

ASTM A653/A653M, 2022 Edition – Standard Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc-Iron Alloy-Coated (Galvannealed) by the Hot-Dip Process

ASTM A653 covers steel sheet, zinc-coated (galvanized) or zinc-iron alloy-coated (galvannealed) by the hot-dip process in coils and cut lengths.

The product is produced in various zinc or zinc-iron alloy-coating weights [masses] or coating designations as shown in Table 1 and in Table S2.1.

Product furnished under this specification shall conform to the applicable requirements of the latest issue of Specification A924/A924M, unless otherwise provided herein.

The product is available in a number of designations, grades, and classes in four general categories that are designed to be compatible with different application requirements.

Steels with mandatory chemical requirements and typical mechanical properties.

Steels with mandatory chemical requirements and mandatory mechanical properties.

Steels with mandatory chemical requirements and mandatory mechanical properties that are achieved through solid-solution or bake hardening.

Units—This specification is applicable to orders in either inch-pound units (as ASTM A653) or SI units (as ASTM A653M). Values in inch-pound and SI units are not necessarily equivalent. Within the text, SI units are shown in brackets. Each system shall be used independently of the other.

The text of this specification references notes and footnotes that provide explanatory material. These notes and footnotes, excluding those in tables and figures, shall not be considered as requirements of this specification.

Unless the order specifies the “M” designation (SI units), the product shall be furnished to inch-pound units.

This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

*A Summary of Changes section appears at the end of this standard

General Product Information:

Revision 2022 Edition
Document Type PDF
Document Language English
Pages 13
Publisher ASTM International (ASTM)
Status Current

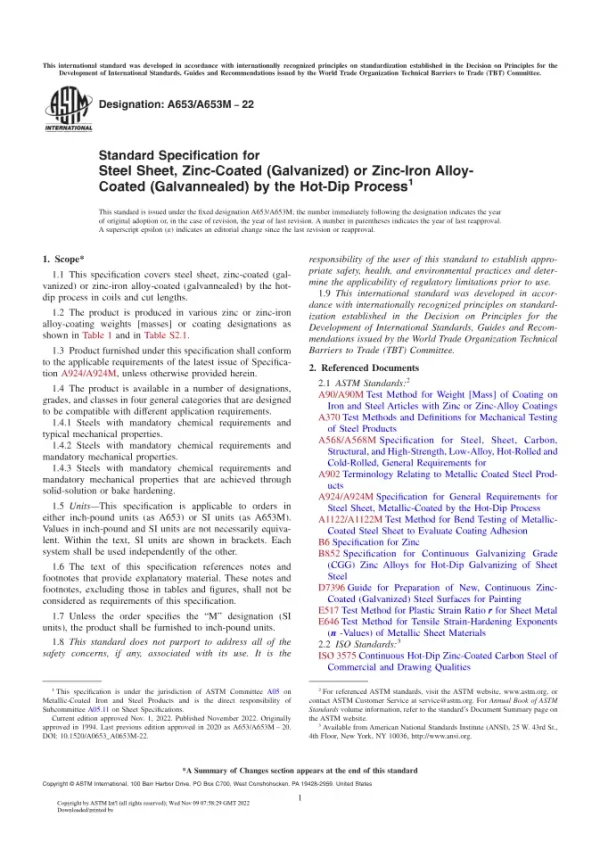

Preview

ASTM Volume

01.06: Coated Steel Products

This volume covers aluminum or zinc-coated steel, tin mill products, and coated steel wire. It also includes standards for chain-link, ornamental, and security fences.
